Despite its premium launch price, the Ryzen 7 9800X3D has been an instant hit, flying off shelves faster than expected, even leading to some scalping activity. However, today, we’re shifting our focus to another standout in the ecosystem—the MSI X870E Carbon WiFi, which accompanied the test kit AMD provided.
Initially, I was surprised to see this model included instead of the usual high-end contenders like the ROG Hero, AORUS Master, or ASRock Taichi. Notably absent was MSI’s ACE, which appears to have been replaced by the Carbon WiFi. However, after testing, it became evident that MSI has significantly upgraded the Carbon WiFi to a level that rivals the ACE in terms of features and performance. This discovery quickly turned my attention to what makes this motherboard stand out.
A Quick Overview of the X870E Chipset
This year, AMD introduced the X870E chipset alongside its Zen5 CPUs. While it builds on the foundation of the X670E, it adds valuable upgrades like more USB4 ports, better DDR5 memory support, and WiFi 7 compatibility, ensuring a degree of future-proofing. While these are the chipset’s standard features, motherboard manufacturers like MSI have taken it further by tailoring the design to suit different user needs.

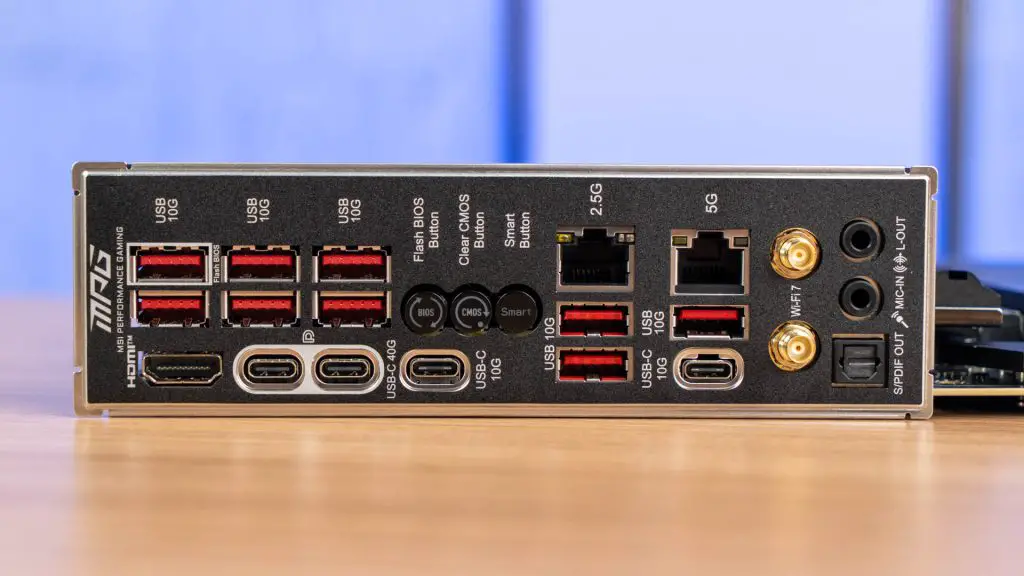

Rear I/O: A USB Lover’s Paradise
When selecting a motherboard, USB port availability is always high on my checklist. If I’m investing over RM1,000, I expect ample connectivity—and the X870E Carbon WiFi doesn’t disappoint.
It features:
- Nine USB 3.2 Gen2 Type-A ports
- Two USB 3.2 Gen2 Type-C ports (supporting up to 10Gbps)
- Two USB4 Type-C ports (supporting up to 40Gbps)
This abundance of ports caters to enthusiasts and gamers demanding robust connectivity. While it lacks a 10GbE LAN port (as found on the MEG X670E ACE), MSI includes 2.5GbE and 5GbE LAN options, which are still respectable for most users.
Additionally, the efficient layout of the rear I/O deserves praise. MSI has cleverly minimized wasted space, tightly placing the USB Type-C DisplayPort near the HDMI port, allowing room for even more USB ports. The three buttons (Smart Button, Clear CMOS, and Flash BIOS) are the only slightly awkward elements, but this is a minor nitpick in an otherwise excellent design.
As for the WiFi connectors, while functional, I hope MSI adopts an easy-connect design in future iterations to match competing brands.

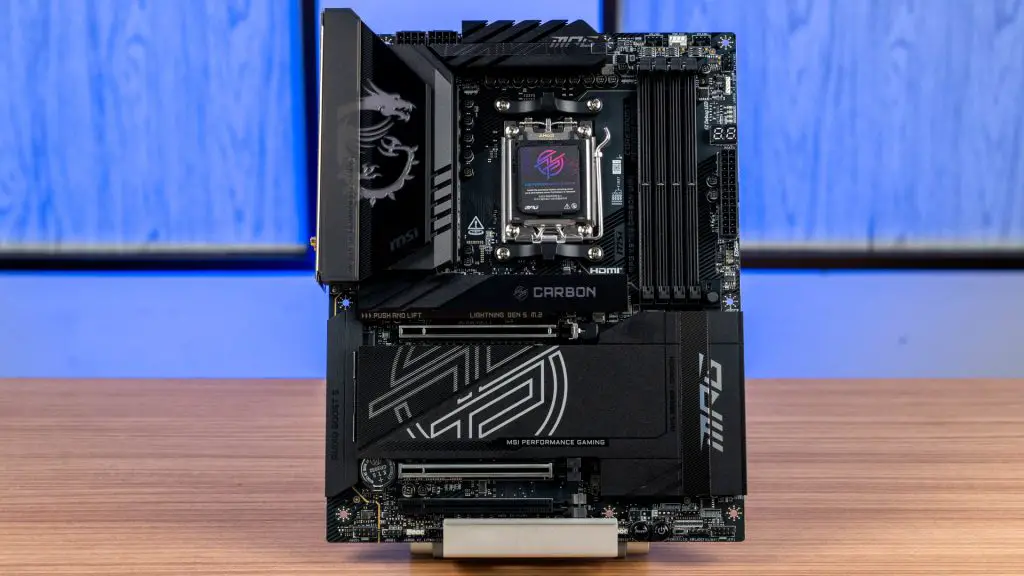

Design and Quality-of-Life Features

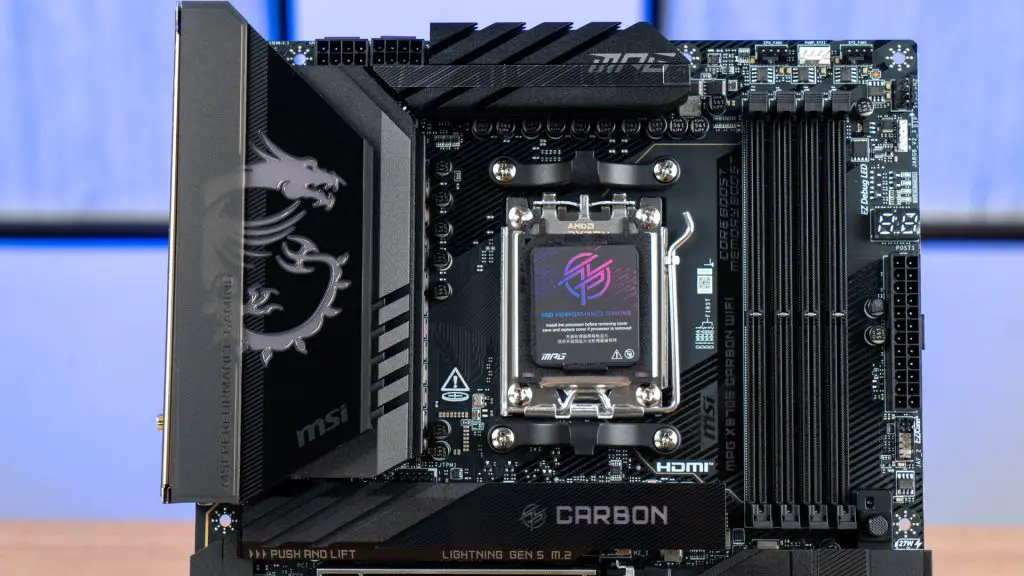

In terms of design, the Carbon WiFi leans more toward functionality than aesthetics. While it may lack the flair of an ACE model, it delivers where it matters—performance. During testing, I achieved impressive results in CPU optimization and memory overclocking, on par with higher-priced competitors, proving the board’s capability for enthusiasts who enjoy system tuning.
Cable Management Excellence

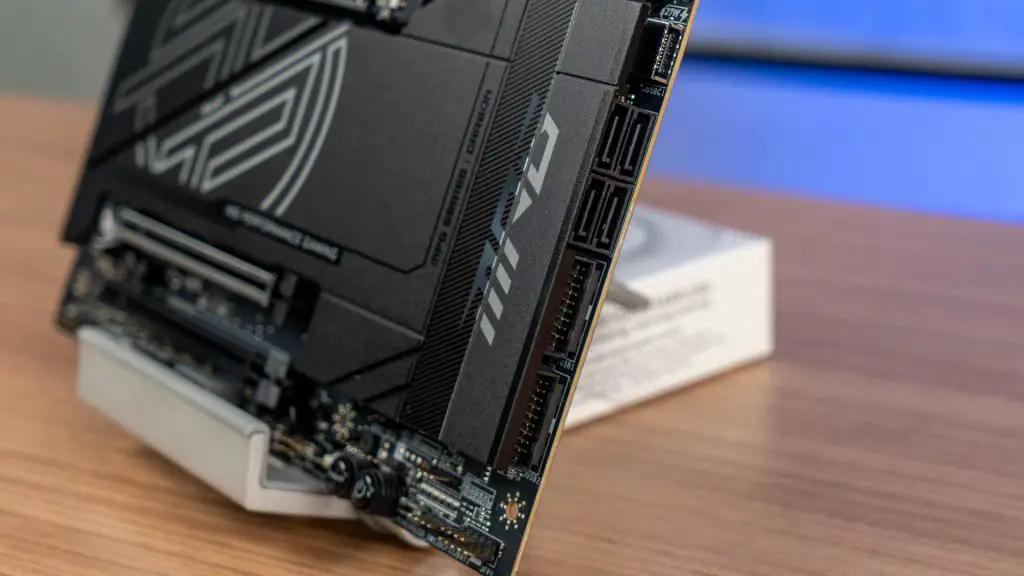

Cable management has long been a challenge in PC building, particularly with bulky connectors like USB3 front-panel headers. MSI addresses this by positioning the USB3 connectors at a 90-degree angle, making them far easier to manage. This thoughtful design prevents accidental damage during installation and works seamlessly with test benches and tight chassis setups.
PCIe and M.2 Innovations

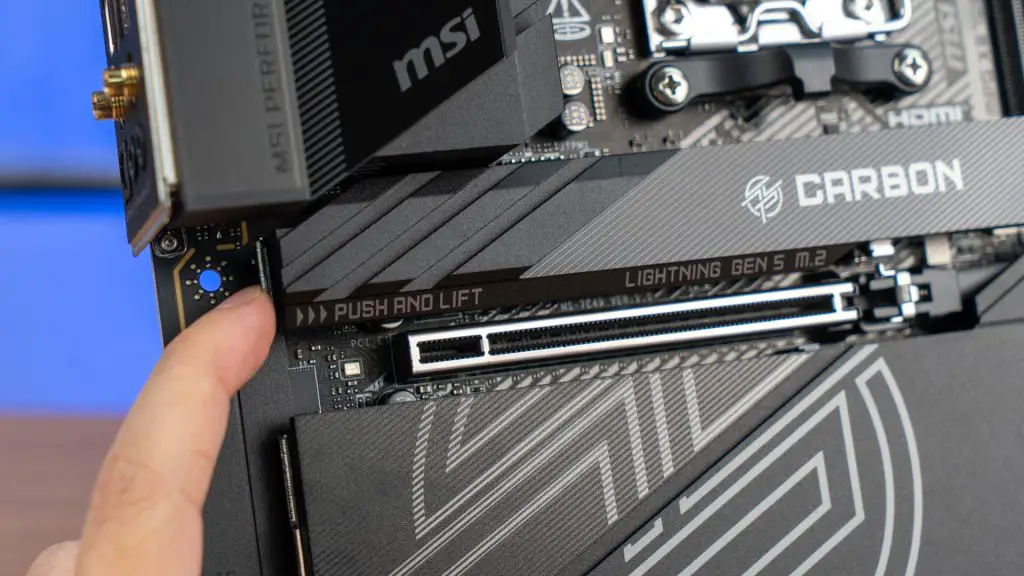

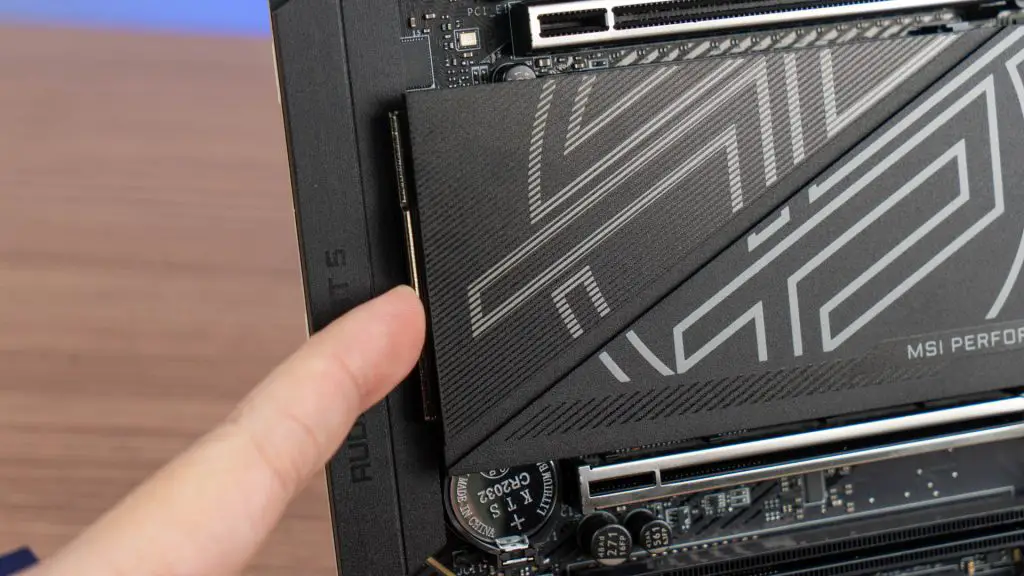

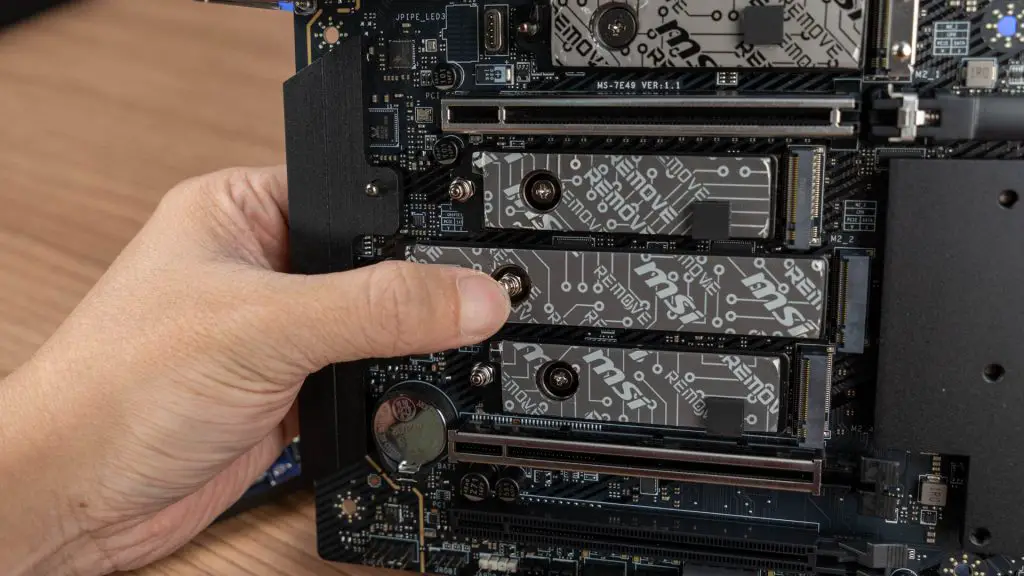

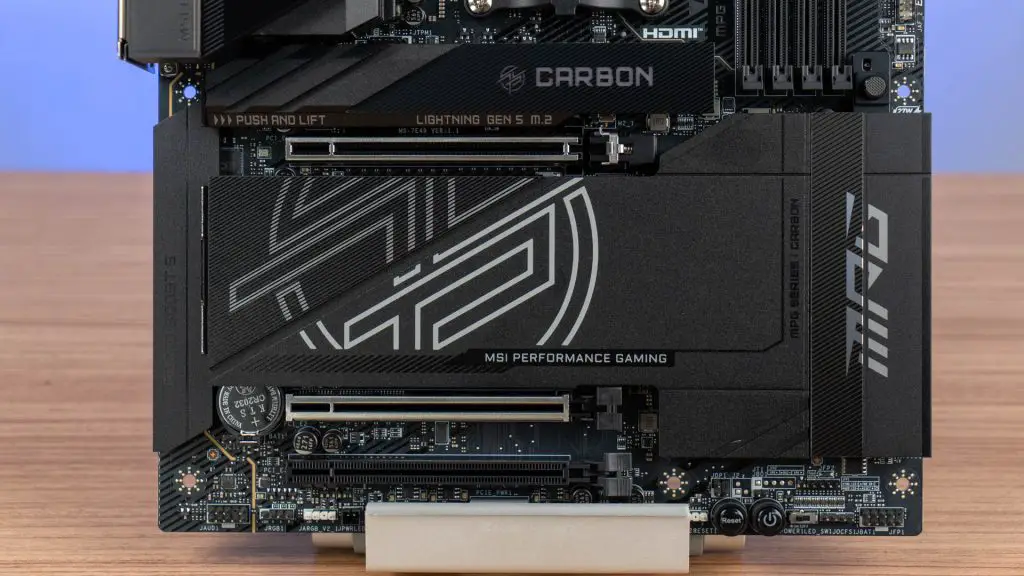

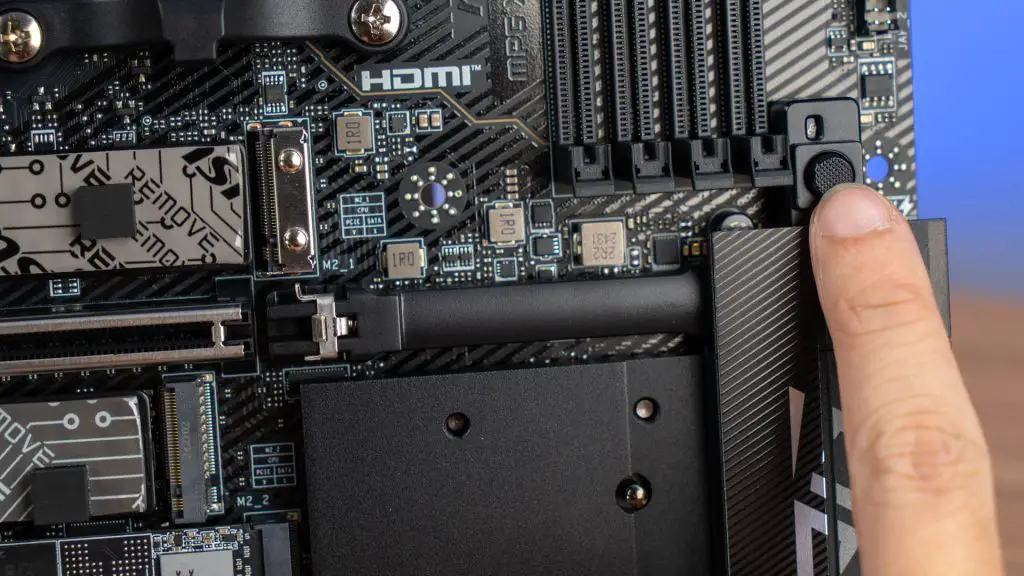

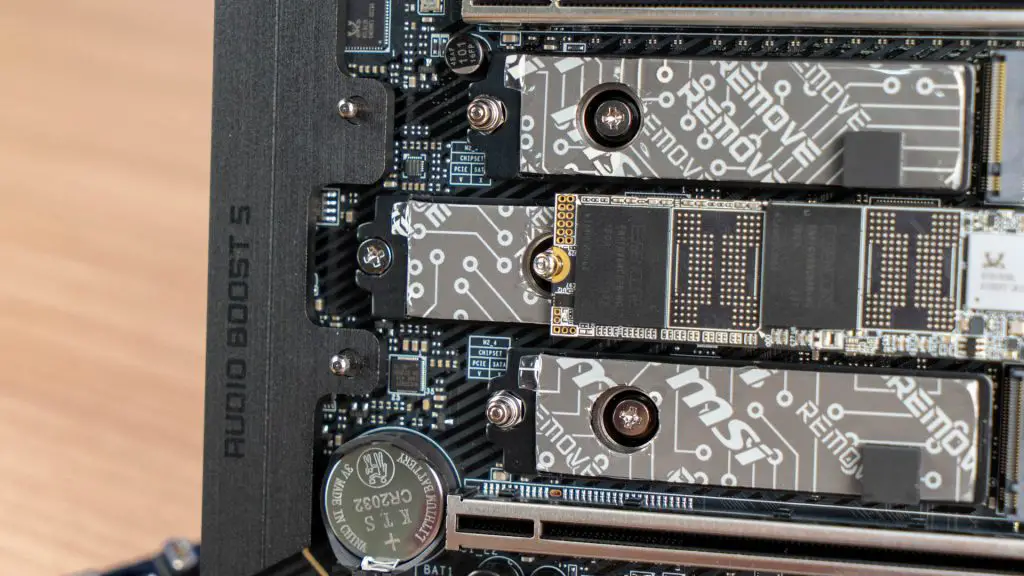

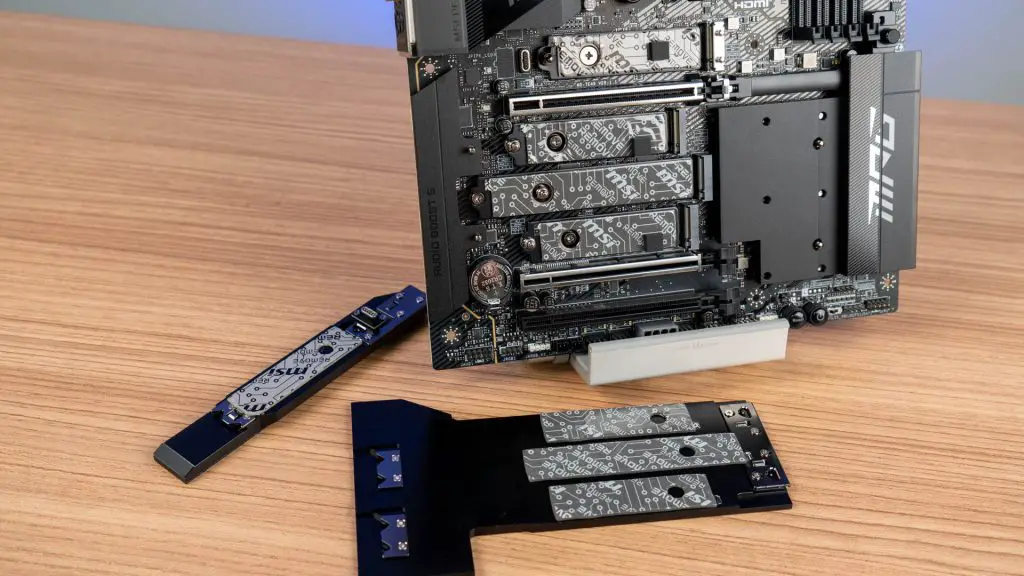

MSI’s PCIe x16 slot EZ-release latch is one of the best designs on the market. The latch locks into place when pressed and stays open until the replacement process is complete, eliminating accidental relocking. Similarly, the easy-release mechanism for M.2 heatsinks, available on all slots, is a significant improvement over competitors who limit this convenience to just one slot.
RGB and Power Connectors

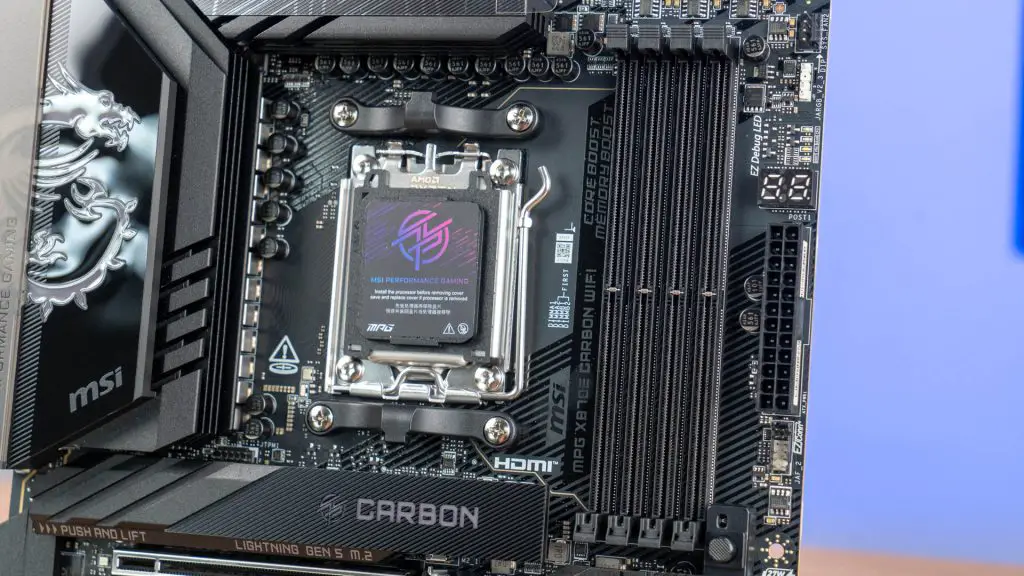

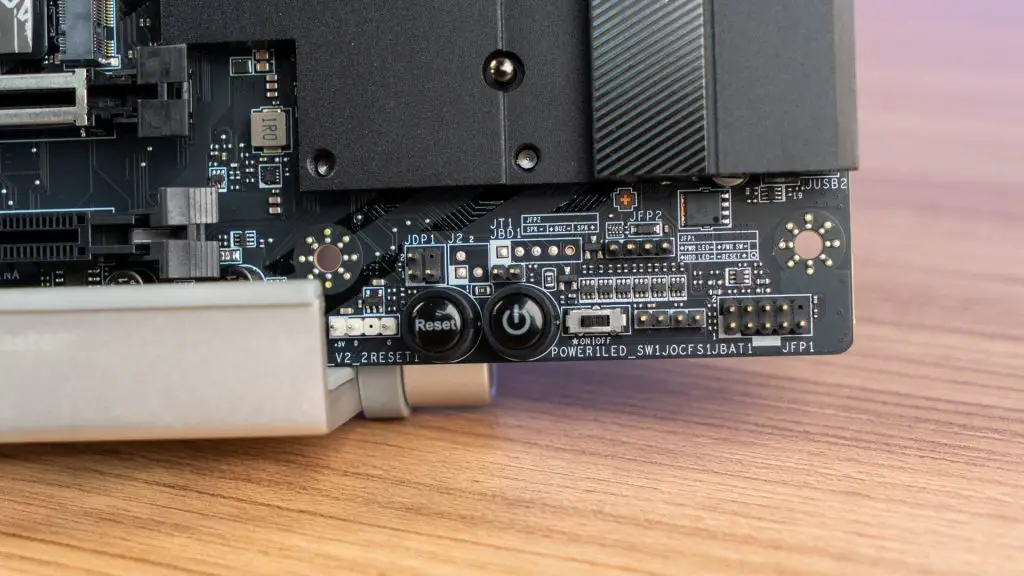

For RGB skeptics like me, MSI includes a physical DIP switch to disable RGB lighting with a single flick—a small but immensely appreciated feature. However, I hope MSI follows its Z890 lineup by relocating the EPS 8-pin connectors to the top-right corner in future designs. This change simplifies installation, particularly for builders with larger hands.
Why Choose the MSI X870E Carbon WiFi?
Some may question why they should choose this motherboard over competing models. While rivals offer impressive features and aesthetics, they often come with a steep price tag—many exceeding RM3,000. By contrast, the X870E Carbon WiFi is priced at RM2,399, offering exceptional value without compromising performance or features.
If you’re upgrading to AMD’s Zen5 CPUs, the MSI X870E Carbon WiFi is a highly recommended choice. It strikes a perfect balance between cost, functionality, and quality, making it an excellent option for both gamers and creators alike.
